Lynx SLS 9.0
Lynx SLS 9.0
| FRAME |

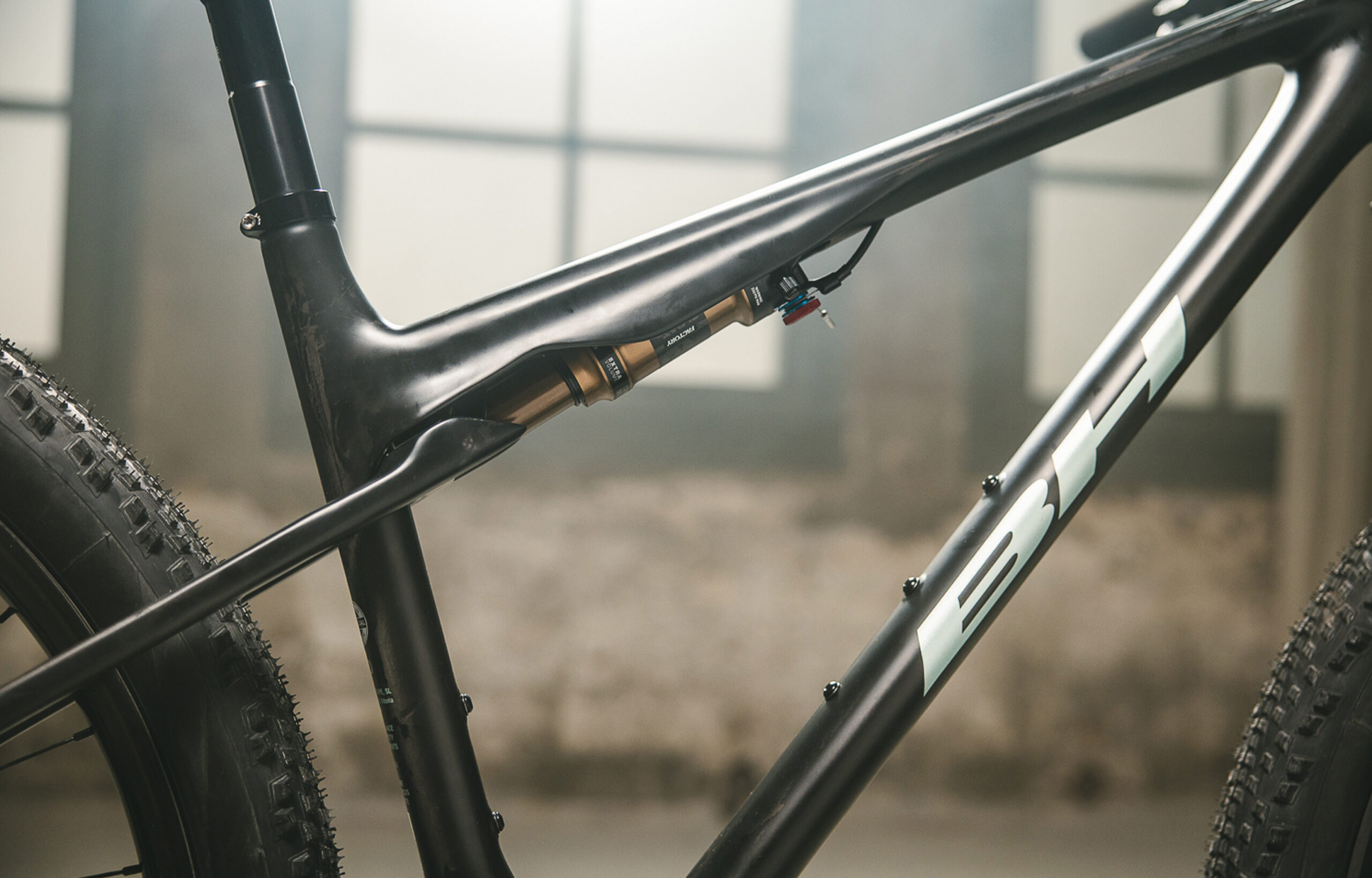

FRAME SLS ECL Carbon 29″ 80mm PF92 Boost
|
REAR SHOCK FOX Float SL Factory PTL 2P 190×40
|
FORK FOX 34SL Factory PTL 2P 110mm
|
|||
| DRIVETRAIN |
SHIFT LEVERS SRAM POD Ultimate
|
REAR DERAILLEUR SRAM XX SL T-Type
|
CRANK SET SRAM XX SL Quark PM T-Type 34T 175mm 55mm
|
BB SET SRAM DUB PF92
|
CASSETE SRAM XX SL T-Type 10/52
|
CHAIN SRAM XX SL T-Type 116L
|
| BRAKES |
FRONT BRAKE Shimano XTR 9200 180mm
|
REAR BRAKE Shimano XTR 9200 160mm
|
||||
| WHEELSET |
WHEELSET EVO Carbon SL 28H 30mm internal 6H Ratchet 40T
|
TIRES Pirelli Scorpion XC RC Lite 2.4
|
INNER TUBES Pirelli Seallant W/O tubes
|
|||
| SEAT |
SADDLE Prologo Nago R4 Nack
|
SEAT CLAMP Bike Yoke Squeezy 34,9mm
|
SEATPOST Bike Yoke Divine SL 125mm 31,6mm
|
|||
| COCKPIT |
HANDLEBAR Stealth integrated 760mm 60mm 9º
|
HEADSET Acros ICR 36/45º, Block Lock 160º
|
GRIPS Grip SL Silicon
|
LYNX SLS 9.9
DS995
| SM | MD | LA | XL | ||
|---|---|---|---|---|---|
| H1 – SEAT-TUBE LENGTH | 420 | 440 | 480 | 510 | |
| H2 – HEAD-TUBE LENGTH | 90 | 90 | 110 | 120 | |
| H3 – BB HEIGHT/ BB DROP | 50 | 50 | 50 | 50 | |
| L1 – TOP-TUBE LENGTH (HORIZONTAL) | 567 | 592 | 617 | 640 | |
| L2 – CHAIN-STAY LENGTH | 426 | 426 | 426 | 426 | |
| L3 – WHEELBASE/FC | 1124 | 1149 | 1177 | 1201 | |
| A1 – HEAD-TUBE ANGLE | 67 | 67 | 67 | 67 | |
| A2 – SEAT-TUBE ANGLE | 76 | 76 | 76 | 76 | |
| STACK | 590 | 590 | 609 | 618 | |
|
REACH |
420 | 445 | 465 |
485 |
